 This is a high-efficiency 32-cavity custom aluminum EPS foam mold specially designed to match KURTZ K813 molding machine. With reliable performance and stable output, the mold has been successfully exported to Mexico for mass production of EPS structural parts.

 As a professional EPS mold manufacturer, we own complete production lines and strict quality control system. Our product range covers industrial structural part molds, EPS fish box molds, agricultural seedling tray molds, furniture & home appliance packaging molds,Helmet Mold and various special-shaped custom molds.





Product Technical Parameters
Mould Name	Factory Direct Custom EPS Aluminum Mold | Affordable for Structural Parts Production
Export to	Mexico
Machine Brand	K813(KURTZ)
Material	EPS
Shrinkage	0.5%
Cavity Wall thickness	10mm
Cavity number	32
Aluminum Support	SW25mm
Guide pin	YES
Crack	10mm
Machine Window	1200x700mm
Male Plate	1300 X 800 X15mm
Female Plate	1300 X 800 X15mm
Filling Gun Plate	1250 X 750 X15mm

 Remark:We also customize fish box mould, seedling tray mould and furniture packaging mould as required.





Our Professional EPS Mould Production Process (7 Steps from Design to Finished Product)

Step 1:Product drawing & mould design made by engineers

Our professional engineers design the mould according to your production requirements. We double-check product drawings and mould drawings carefully to make sure all sizes and structures meet your standards.

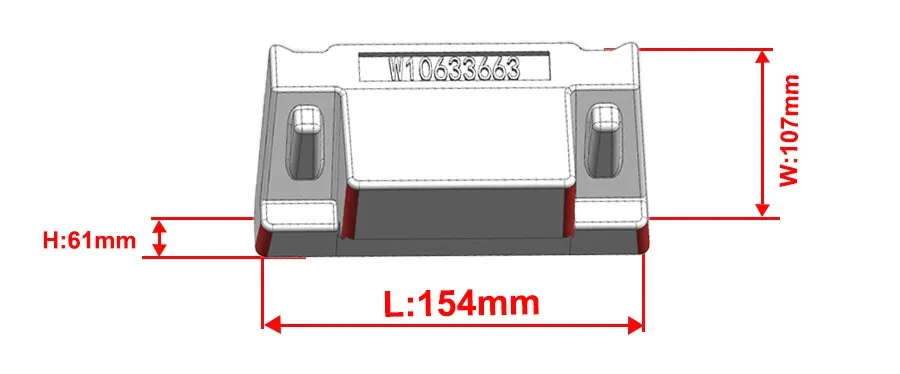

Product drawing confirmed

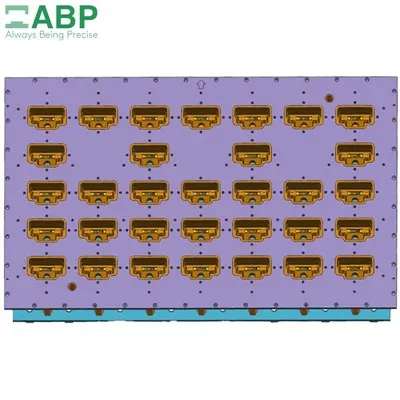

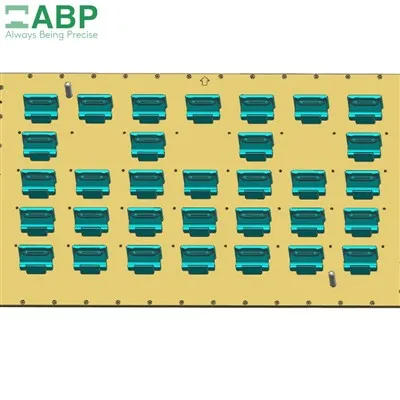

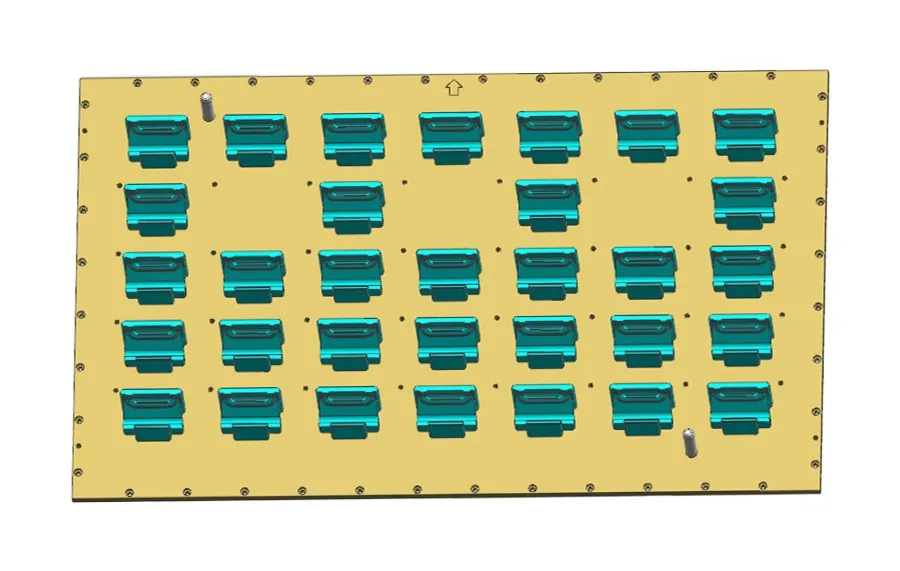

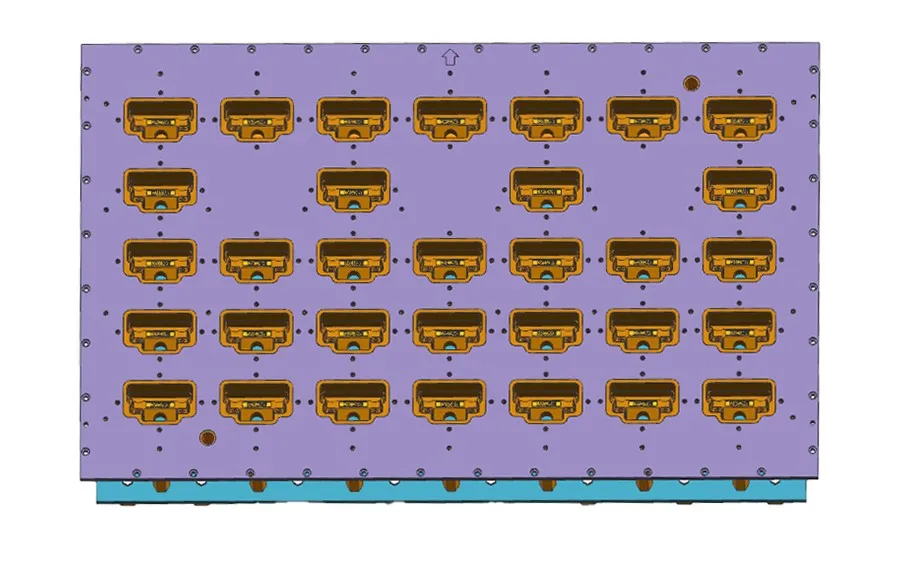

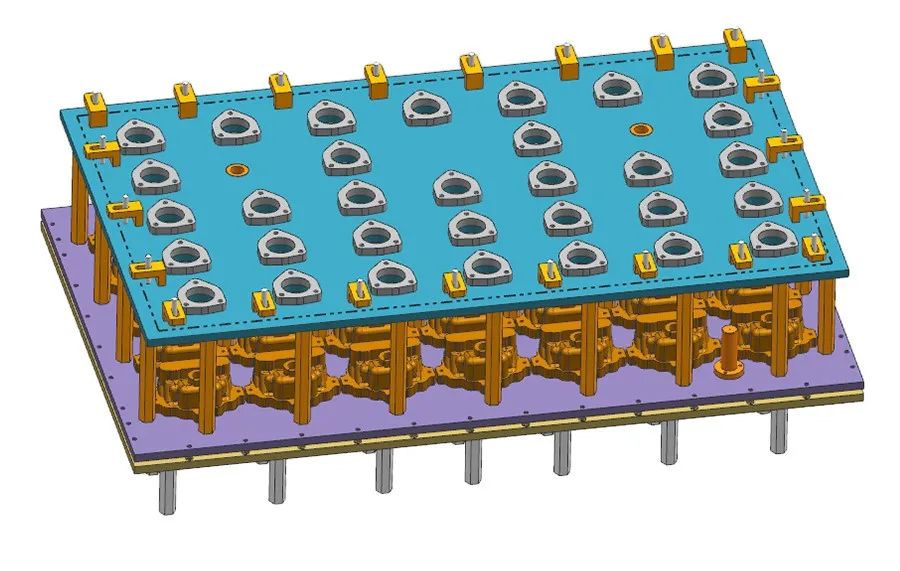

Mould drawing confirmed





Step 2: Wooden model & Plaster model

After drawings are confirmed, we make wooden models. We check the overall shape and size in advance to fix tiny errors, laying a solid foundation for formal production.

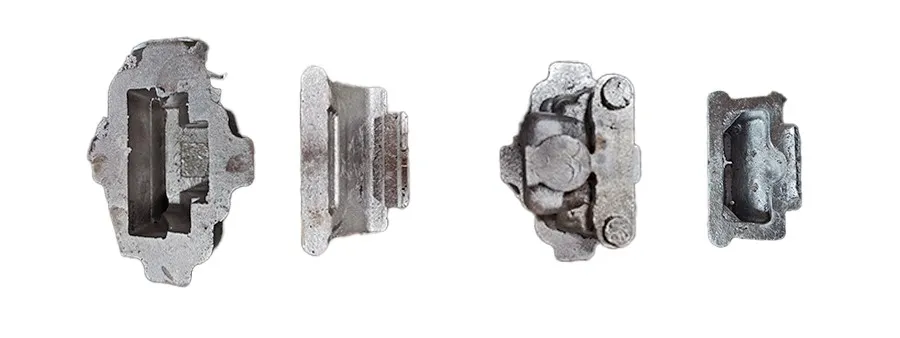

Step 3: Common casting & 3D printed sand mold casting

For mass-produced standard molds, professional casting workers strictly follow standardized procedures to complete sand filling, compaction, mold closing and aluminum liquid pouring.







Step 4:CNC Process(Cavity & Core & Al Plate)

Cavities, cores and all aluminum plates are processed by high-precision CNC equipment, ensuring high assembly accuracy of the whole mould.









Step 5: Drill Holes/Install Core Vents /Polishing/Match The Mould

We drill holes and install vents for smooth foaming and air exhaust. The mould surface is finely polished. Finally we assemble and debug the mould to ensure flexible opening and closing.













Step 6: Teflon Coated

Teflon coating is sprayed on the mould surface to enhance anti-stick, wear-resistant and corrosion-resistant ability, extending the service life.

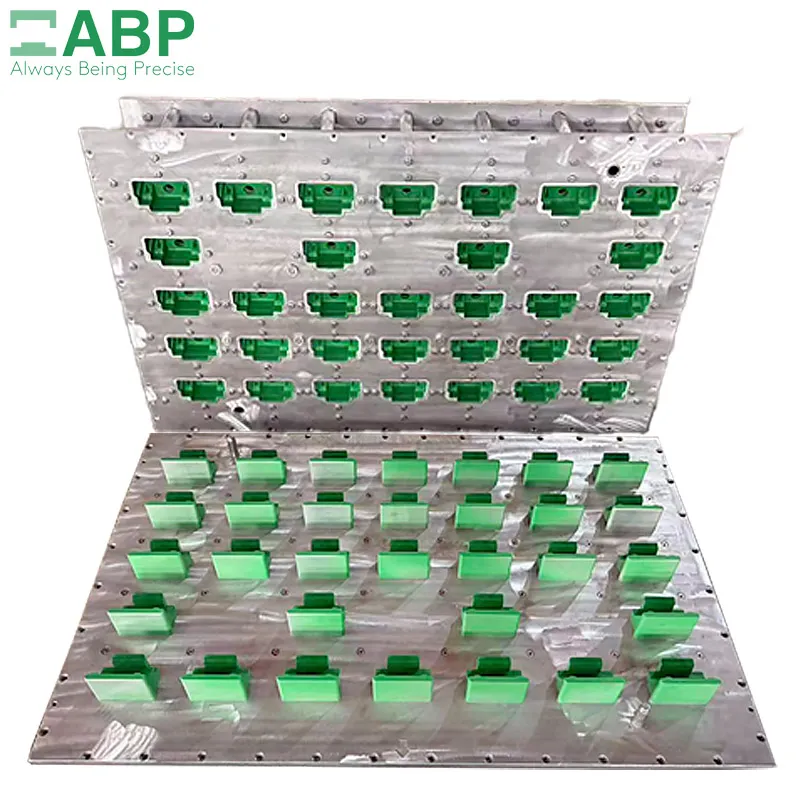

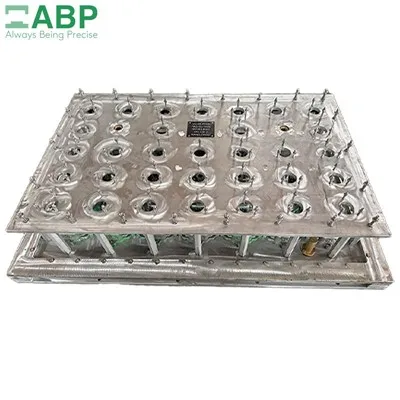

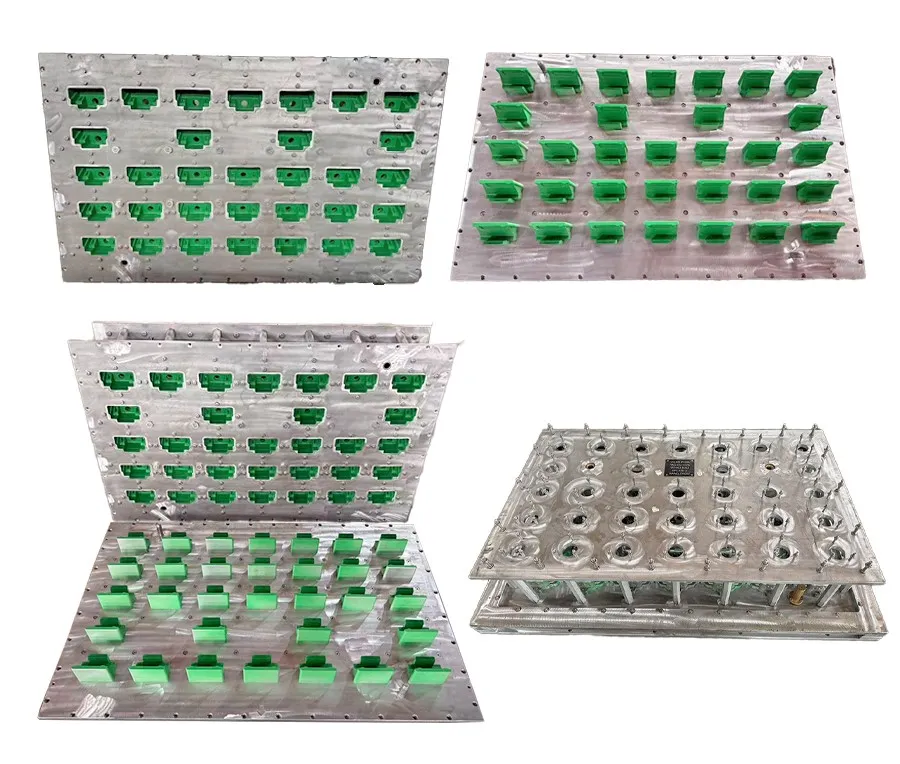

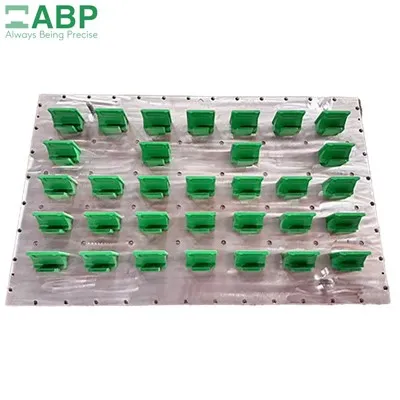

Step 7:Finished Mould(test mould is available)

After all processes are finished, we test the mould on machine. Only qualified products will be packaged and delivered to Mexico.







 Custom Service & Cooperation

✅ Custom design according to your drawings, samples and technical requirements

✅ Support different cavity quantity, size, plate thickness and structural modification

✅ Compatible with various mainstream EPS molding machines

✅ Professional overseas export packaging, long-distance transportation protection

✅ Export experience to Mexico and other global markets

Send inquiry now to get detailed quotation and delivery time!
