High Precision Aluminum EPS Foam Mould | Durable Industrial Structural Components Mould





Professional EPS Mold for Industrial Structural Parts | Custom Aluminum EPS Mold Exported to Mexico | Complete Pre-delivery Testing & Full Customization Support.

 As a professional EPS aluminum mold manufacturer, we provide one-stop customized solutions for various EPS foam products. Our product range covers EPS fish box mould, agricultural seedling tray mould, furniture & home appliance packaging mould, Helmet Mold,insulation foam mould and special-shaped EPS moulds, besides structural parts moulds.



Product Specifications
Mould Name	High Precision Aluminum EPS Foam Mold | Durable Industrial Structural Components Mould
Export to	Mexico
Machine Brand	K813(KURTZ)
Material	EPS
Shrinkage	0.5%
Cavity Wall thickness	10mm
Cavity number	24
Aluminum Support	SW25mm
Guide pin	YES
Crack	10mm
Machine Window	1200x700mm
Male Plate	1300 X 800 X15mm
Female Plate	1300 X 800 X15mm
Filling Gun Plate	1250 X 750 X15mm

Remark:We also customize fish box mould, seedling tray mould and furniture packaging mould as required.







 Our Professional EPS Mould Production Process (7 Steps from Design to Finished Product)

---



Step 1:Product drawing & mould design made by engineers

Our professional engineers design the mould according to your production requirements. We double-check product drawings and mould drawings carefully to make sure all sizes and structures meet your standards.

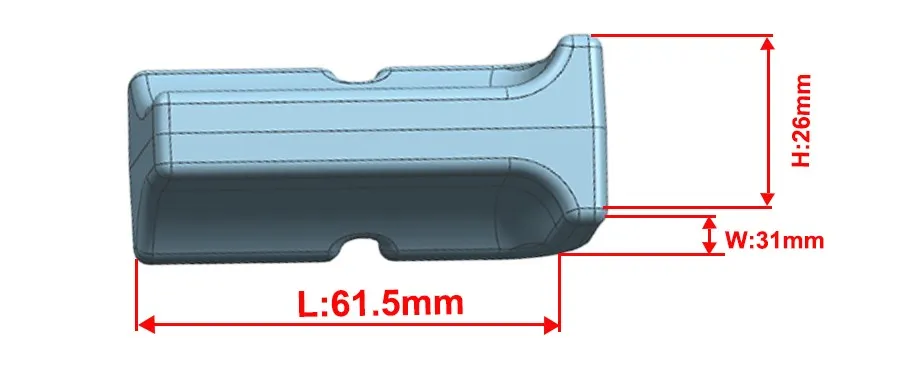

Product drawing confirmed

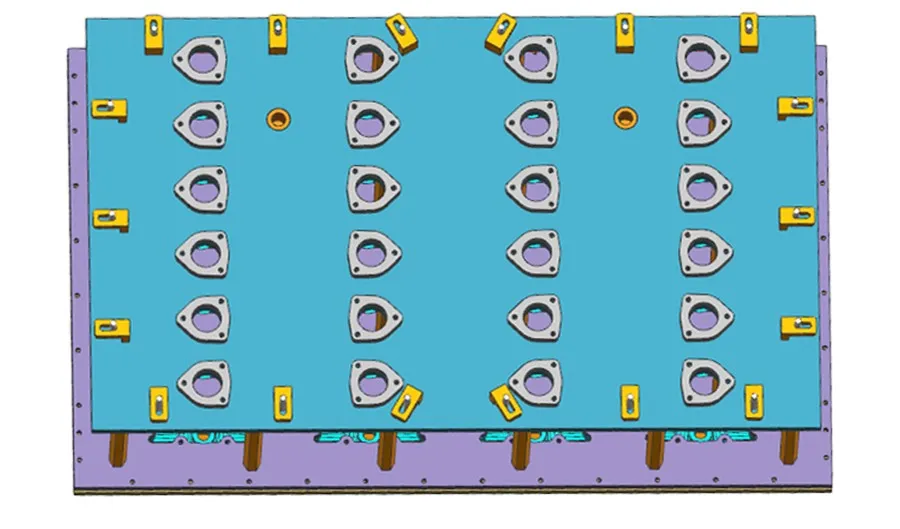

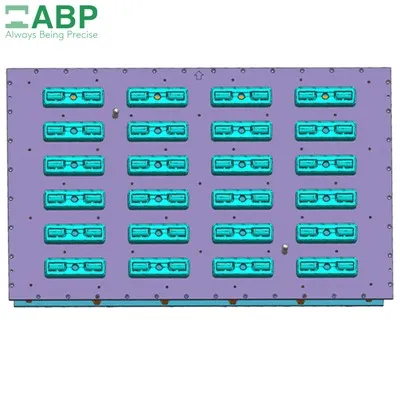

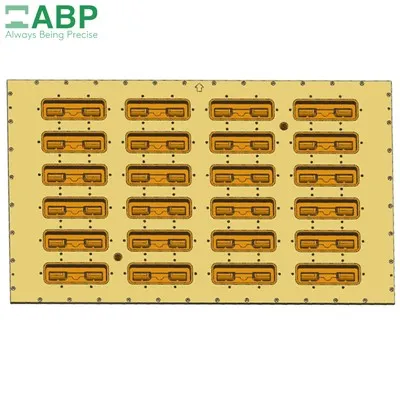

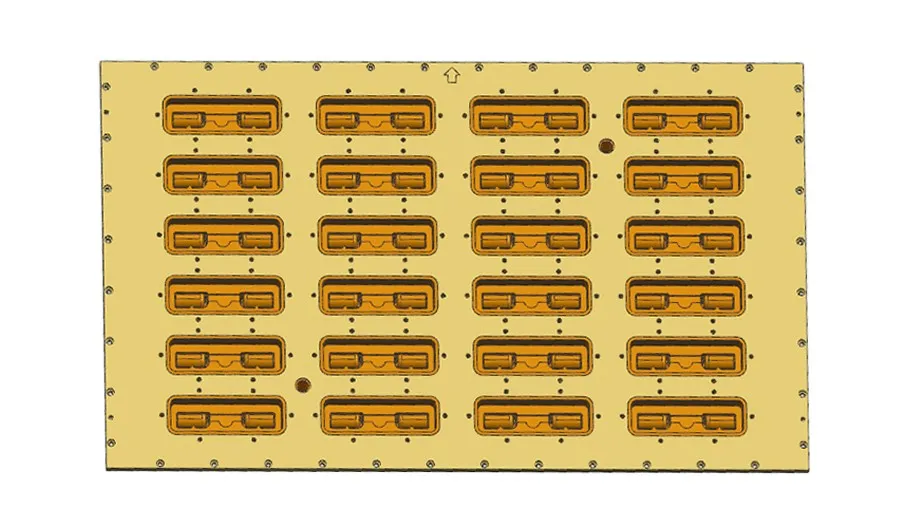

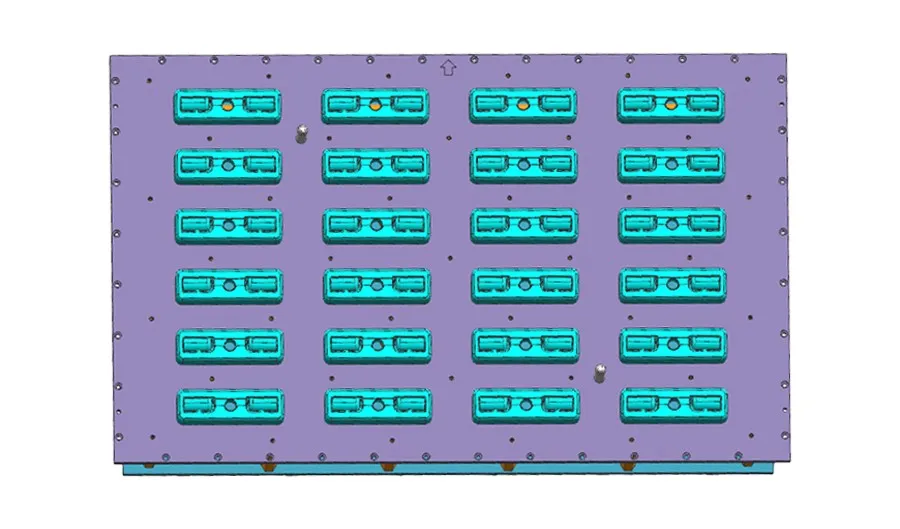

Mould drawing confirmed





Step 2: Wooden model & Plaster model

After drawings are confirmed, we make wooden models. We check the overall shape and size in advance to fix tiny errors, laying a solid foundation for formal production.

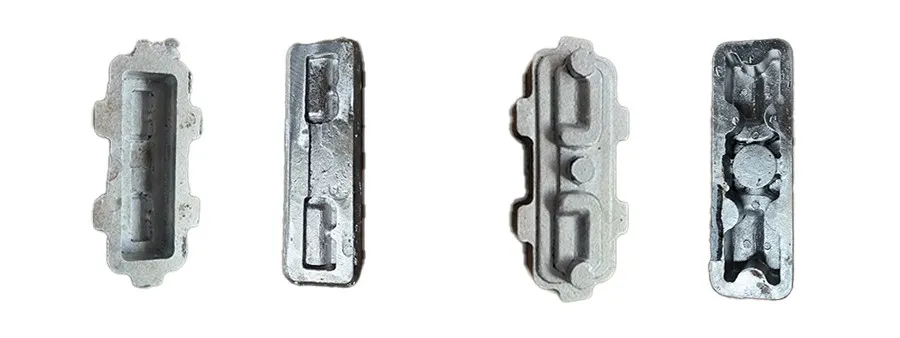

Step 3: Common casting & 3D printed sand mold casting

For mass-produced standard molds, professional casting workers strictly follow standardized procedures to complete sand filling, compaction, mold closing and aluminum liquid pouring.





Step 4:CNC Process(Cavity & Core & Al Plate)

Cavities, cores and all aluminum plates are processed by high-precision CNC equipment, ensuring high assembly accuracy of the whole mould.



Step 5: Drill Holes/Install Core Vents /Polishing/Match The Mould

We drill holes and install vents for smooth foaming and air exhaust. The mould surface is finely polished. Finally we assemble and debug the mould to ensure flexible opening and closing.











Step 6: Teflon Coated

Teflon coating is sprayed on the mould surface to enhance anti-stick, wear-resistant and corrosion-resistant ability, extending the service life.

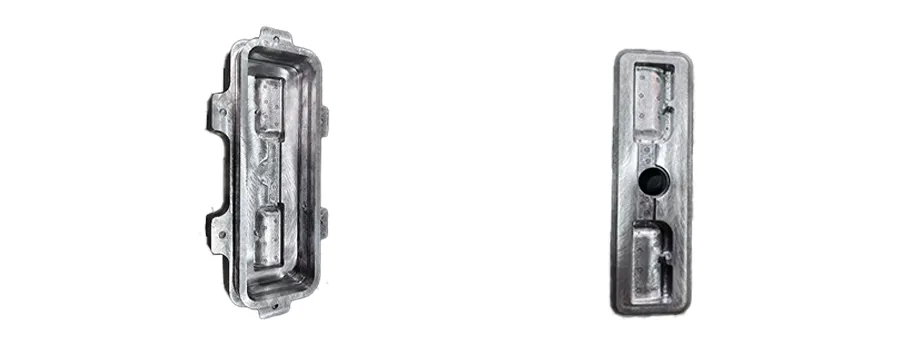

Step 7:Finished Mould(test mould is available)

After all processes are finished, we test the mould on machine. Only qualified products will be packaged and delivered to Mexico.





 Custom Service & Cooperation

---



✅ Custom design according to your drawings, samples and technical requirements

✅ Support different cavity quantity, size, plate thickness and structural modification

✅ Compatible with various mainstream EPS molding machines

✅ Professional overseas export packaging, long-distance transportation protection

✅ Export experience to Mexico and other global markets



 Send inquiry now to get detailed quotation and delivery time!
